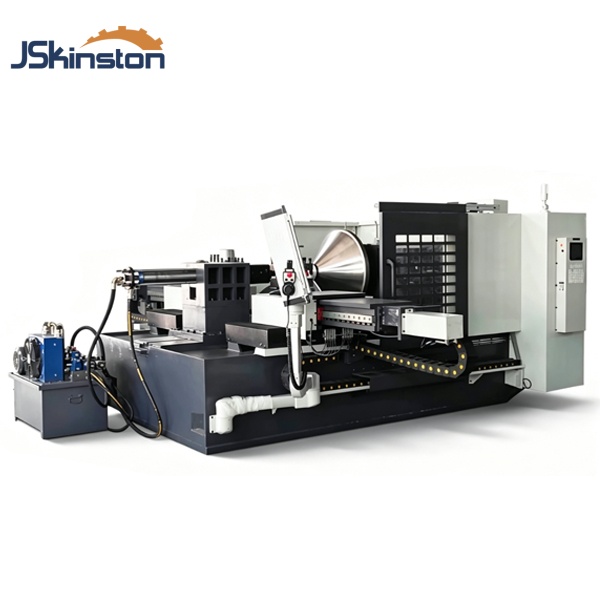

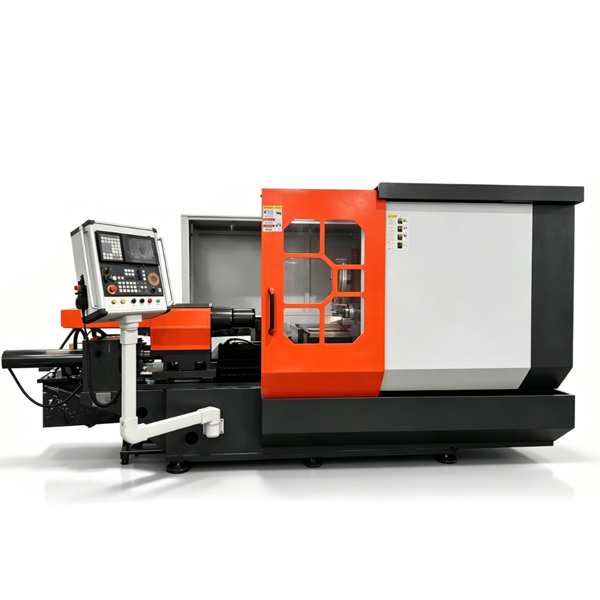

HSP610 three roller CNC forming equipment adopts triangular balanced three rollers for high-precision forming of large metal shells. It realizes one-step seamless shaping with rigid anti-vibration bed and programmable CNC system, suitable for mass production of oversized stainless steel and aluminum rotary components.
Số lượng đặt hàng tối thiểu (MOQ) :
1Nguồn gốc sản phẩm :
ChinaMàu sắc :
CustomizedCảng vận chuyển :
ShanghaiThời gian giao hàng :
30Balanced 3 Roller CNC Thinning Spinning Machine
1.Triangular three-roller balanced extrusion
Uniform surrounding pressure prevents large metal shells from deforming and ensures even wall thickness.
2.One-step seamless integral forming
Finishes thinning, necking and flanging at once, no weld seams for better air tightness.
3.Reinforced cast iron anti-vibration bed
Stable structure retains consistent precision during long-time continuous production.
4.CNC programmable storage system
Save forming parameters of different shells, one-click switching to cut changeover time.
5.Wide material compatibility
Supports forming stainless steel, aluminum and copper for various large shell workpieces.
specification
|
Item |
|
HSP420 |
HSP610 |
|
|
Diameter range |
mm |
90-440 |
100-650 |
|
|
Spinning length |
mm |
2500/3000 |
3000/4000 |
|
|
Radial |
Pressure |
KN |
250-600 |
250-600 |
|
Stroke |
mm |
180 |
260 |
|
|
Speed |
mm/min |
1500 |
1500 |
|
|
Axial |
Pressure |
KN |
250-600 |
250-600 |
|
Stroke |
mm |
2600/3100 |
3100/4100 |
|
|
Speed |
mm/min |
3000-6000 |
3000-5000 |
|
|
Spindle speed |
RPM |
0-450 |
0-320 |
|
|
Spindle power |
KW |
90/110 |
110/160 |
|
|
Wheel |
QTY |
3 |
3/4 |
|
Product Advantages
Why choose us
Mature And Stable Technology
Support Customized Solutions
Complete After-sales Service
Our certification
Authoritative Certifications, Stable and Reliable Quality.

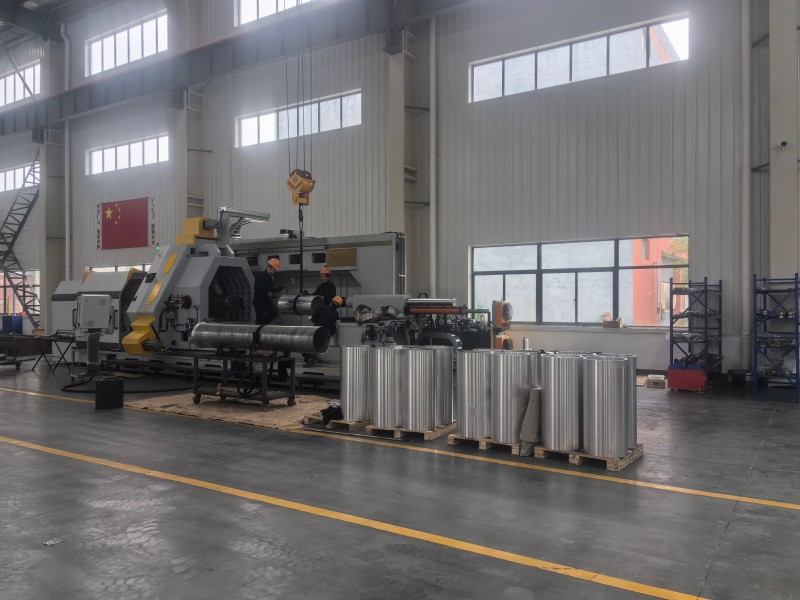

factory show
Professional Production Base, Strength in Precision Manufacturing

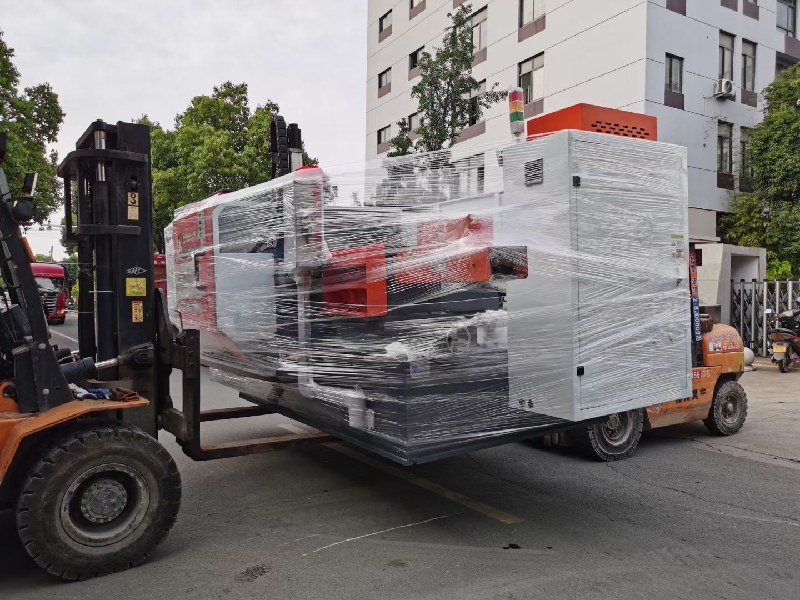

Packing and shipping
Safe & Professional Transportation, On-Time Delivery Guaranteed
FAQ
1.What raw materials can your CNC spinning machines process?
All our spinning lathes support aluminum, stainless steel, copper, brass and carbon steel sheets, suitable for various thickness axisymmetric blank forming.

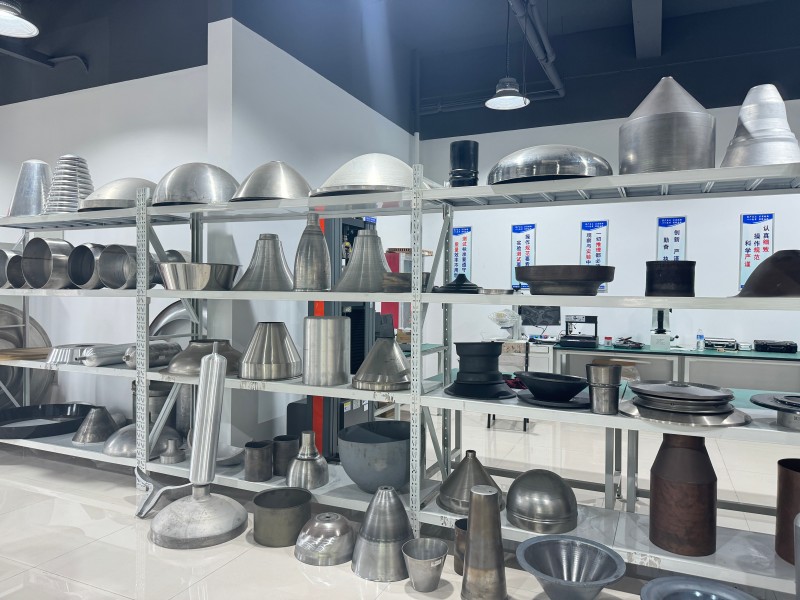

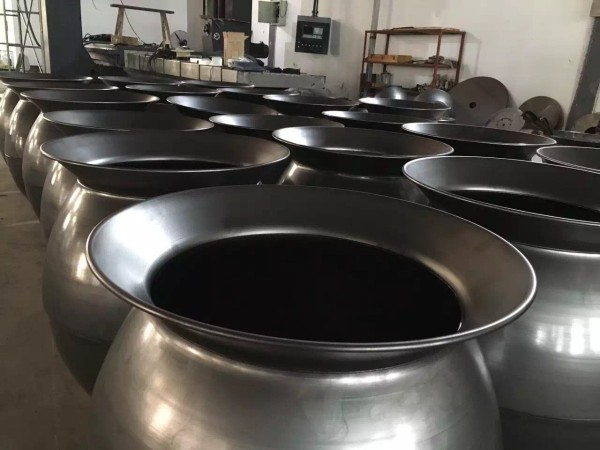

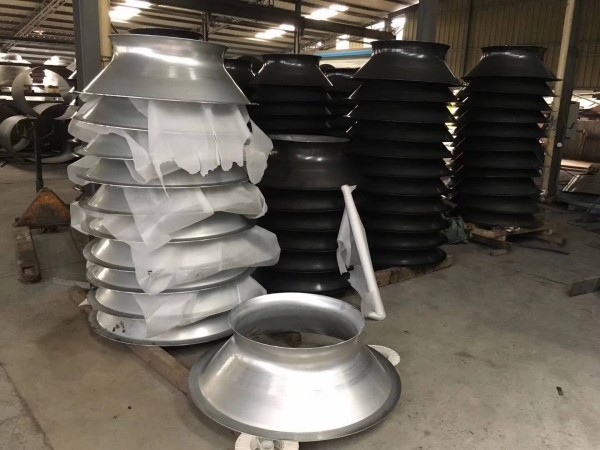

2.What kinds of finished parts can your spinning equipment produce?
They can make venturi valves, lamp reflectors, stainless steel cookware, water tank liners, fan cones, auto exhaust shells and other seamless rotary components for HVAC, kitchenware, lighting and auto industries.

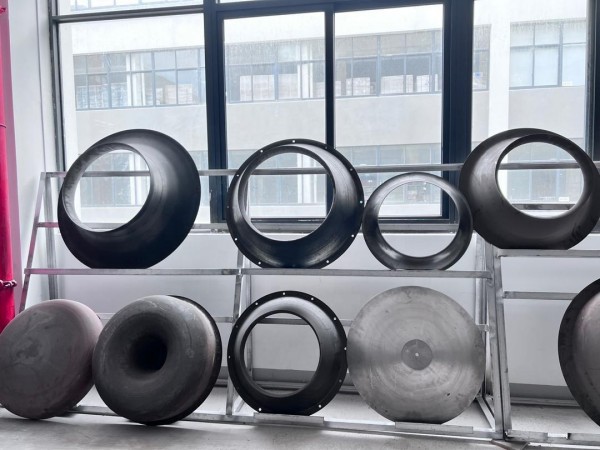

3.What large axisymmetric parts can this 3 rollers CNC spinning lathe produce?
It can fabricate large venturi valves, automotive wheel hubs, pressure vessel heads and big lamp reflectors made of stainless steel and aluminum.
4.What is the advantage of three rollers compared with double roller spinning machines?
Three symmetric rollers provide more balanced extrusion force, greatly reduce workpiece deformation and achieve more uniform wall thickness for large-size thin-wall parts.
5.What is the MOQ?
Machine MOQ is 1 unit.
